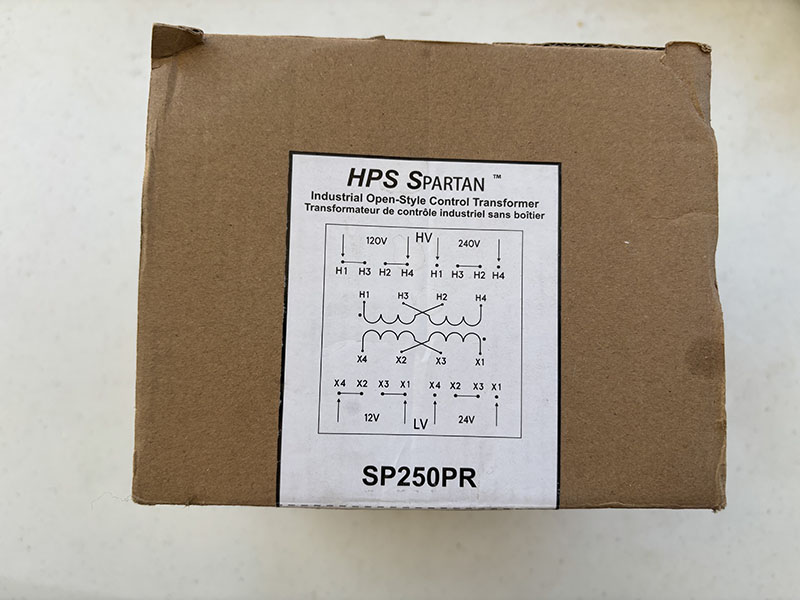

HPS Spartan – SP250PR Transformer

Description

Hammond Power Solutions (HPS) Spartan SP250PR — Open-Style Control Transformer, 250 VA, 120/240V Primary, 12/24V Secondary
Catalog Number: SP250PR
Brand: Hammond Power Solutions (HPS)
Product Line: Spartan — Industrial Open-Style Core & Coil Control Transformers
Made In: Canada (Hammond Power Solutions, Guelph, Ontario)

Product Overview
The HPS Spartan SP250PR is a 250 VA, single-phase, open-style (core and coil) control transformer that steps down 120/240 VAC to 12/24 VAC. It is designed for general-purpose, light-duty control applications where high inrush or machine-tool duty ratings are not required.
This is a dry-type, open-frame transformer with molded terminal blocks — it mounts inside an electrical enclosure or control panel and is not intended for standalone outdoor use. The windings are vacuum-impregnated with polyester resin and oven-cured for moisture and vibration resistance.
The Spartan series is HPS’s economical control transformer line, positioned below their Imperator (machine-tool duty) series. It is well suited for HVAC controls, signal and alarm systems, motor control circuits, lighting, door bells/chimes, and circuit isolation applications.

Electrical Specifications
ParameterValueVA Rating250 VAPhaseSingle-phase (1Ø)Frequency50/60 HzPrimary Voltage120 × 240 VAC (also configurable as 115/230 or 110/220 — see wiring section)Secondary Voltage12 × 24 VAC (also configurable as 11.5/23 or 11/22 — see wiring section)Secondary Full-Load Current (at 24V)10.4 ASecondary Full-Load Current (at 12V)20.8 AWinding MaterialCopperInsulation ClassClass B (130°C)Ambient Temperature Rating40°C maximum

Voltage Configurations
The SP250PR primary and secondary windings have center taps and are supplied with voltage link jumpers, allowing multiple voltage configurations from the same transformer:
Primary Voltage Options
ConfigurationPrimary VoltageSeries (jumper installed)240 VAC (or 230V, or 220V)Parallel (jumper installed)120 VAC (or 115V, or 110V)
Secondary Voltage Options
ConfigurationSecondary VoltageFull-Load CurrentSeries (jumper installed)24 VAC (or 23V, or 22V)10.4 AParallel (jumper installed)12 VAC (or 11.5V, or 11V)20.8 A
Primary and secondary voltage link jumpers are supplied standard with the transformer. Refer to the HPS wiring instruction sheet for proper jumper placement for your desired voltage configuration.

Physical Specifications
ParameterValueLength3.78 in (96 mm)Width3.90 in (99 mm)Height3.40 in (86 mm)Weight[VERIFY on unit — typically 3–5 lbs for 250 VA open-style]Enclosure TypeOpen / Core and Coil (no enclosure — panel mount inside a cabinet)MountingPanel mount (base-mounted with screw holes)Connection TypeScrew terminals (molded terminal blocks)
Terminal Hardware

Terminal blocks: Molded, combination slot/Phillips #6 screw with SEMS washer
Coil face terminations: 1/4-20 UNC × 0.50 in slot/Phillips screw with spring lock washer

Construction Features

Copper-wound coils with high dielectric strength insulation
Vacuum impregnated with polyester resin and oven cured — improves moisture resistance, reduces vibration and audible noise
Bolted core construction — laminated steel core held with through-bolts for mechanical stability
Molded terminal blocks — Standard on all units from 50 VA to 3000 VA
Primary and secondary voltage links/jumpers supplied standard
Trilingual installation and wiring instruction sheets included
Seismically certified in accordance with IBC 2009, Section 1613 (SDS ≤ 2.00g, z/h = 1.0, IP = 1.5)

Certifications & Standards
StandardDetailsCSACSA certifiedULUL recognizedIECMeets IEC standardsNEMAMeets NEMA standardsSeismicIBC 2009, Section 1613

Typical Applications

HVAC controls — Stepping down 120V or 240V to 24V for thermostat circuits, zone valves, damper actuators, and control boards
Signal and alarm systems — Providing 12V or 24V for doorbells, chimes, annunciators, and building alarm panels
Motor control circuits — 24V control power for contactors, relays, timers, and pilot devices
Lighting — Low-voltage landscape lighting, display lighting, or indicator lamp circuits
Circuit isolation — Providing galvanic isolation between a noisy power source and sensitive control equipment
General-purpose step-down — Any application requiring 12V or 24V AC at up to 250 VA (20.8A at 12V or 10.4A at 24V)

What This Transformer is NOT
The Spartan series is a general-purpose / light-duty control transformer. It is not rated for:

Machine tool duty — Applications with high inrush loads (solenoids, contactors with high VA pick-up) should use the HPS Imperator series, which is designed for high-inrush, momentary-duty applications
Outdoor use — This is an open-frame unit with no enclosure. It must be installed inside a NEMA-rated cabinet or panel
High-inrush applications — If your load has a high starting (sealed) VA compared to the holding (unsealed) VA, you need a machine-tool rated transformer with better regulation

For HVAC, signal, alarm, and similar steady-state control loads, the Spartan is the right choice and the more economical option.

Catalog Number Breakdown
CodeMeaningSPSpartan series (general-purpose, open-style control transformer)250250 VA ratingPPrimary voltage code: P = 120 × 240 VACRSecondary voltage code: R = 12 × 24 VAC
Common HPS Spartan Catalog Number Suffixes (for reference)
Primary CodePrimary VoltageP120 × 240 VACQ240 × 480 VACA600 VACB240/480/600 VAC multi-tap
Secondary CodeSecondary VoltageG120/240 VACJ120/240 VAC (from 600V primary)R12 × 24 VAC

Optional Accessories (Sold Separately)
AccessoryDescriptionFinger guard kitProtective finger guard for primary or secondary terminals (one kit per side, ordered separately)Fuse block adapter kitMechanical adapter for mounting a third-party fuse block directly on the transformer (HPS does not supply fuses or fuse blocks — adapter only provides mounting means)

Warranty
HPS Spartan transformers carry a 15-year warranty from Hammond Power Solutions.

Condition & Notes
Condition: [INSERT: New / New Surplus / Used]
Tested: [INSERT: Visually inspected / Megger tested / Turns ratio verified / New in box]
Includes: [INSERT: Transformer, voltage link jumpers, instruction sheet / List what is actually included]

Cross-Reference / Equivalent Models
The SP250PR is functionally equivalent to any 250 VA, 120/240V to 12/24V, single-phase, open-style control transformer. Common cross-references include:
ManufacturerEquivalent Model (approximate)Acme ElectricTA-2-81211 or similarSiemensMT0250A or similarEaton / Cutler-HammerC0250E2A or similarGE9T58K0044 or similar
Note: Physical dimensions, mounting hole patterns, and terminal configurations vary between manufacturers — verify physical fit before ordering as a replacement.

Key Documents (Available from Hammond Power Solutions)

Spartan Brochure: HPS Spartan Industrial Open Core & Coil Control Transformer Brochure
Installation / Wiring Instructions: Available at hammondpowersolutions.com under Products → Instruction Sheets
Dimensional Drawings: Available in Spartan catalog

Sold by Celtex Electric & Automation — Calgary, Alberta
Contact us for pricing, availability, and technical support.
