Danfoss VLT AutomationDrive FC-302

Description

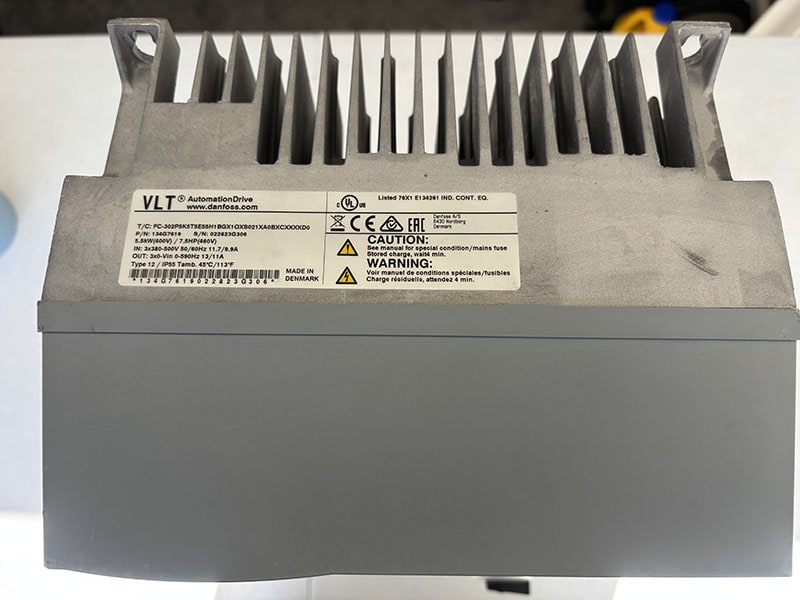

Type Code: FC-302P5K5T5E55H1BGXXXXS021XA0BXCXXXXD0

Product Overview
Danfoss VLT AutomationDrive FC-302, 5.5 kW (7.5 HP) variable frequency drive (VFD) in a sealed IP55 / NEMA Type 12 enclosure. The FC-302 is Danfoss’s high-performance drive platform, suitable for demanding machine and process applications requiring precise speed and torque control. This unit includes a built-in brake chopper and graphical LCP display.

Decoded Type Code
PositionCodeMeaningProduct FamilyFC-302VLT AutomationDrive FC-302 SeriesPower RatingP5K55.5 kW / 7.5 HPPhaseTThree-PhaseMains Voltage5380–500 VACEnclosureE55IP55 / NEMA Type 12 (dust-tight, wash-down)RFI FilterH1EMC Class A1/B (C1) — standard industrial filterBrakeBBrake chopper includedDisplayGGraphical Local Control Panel (LCP 102)PCB CoatingXNot coatedSoftwareS021Software version 021A OptionA0No A-slot option cardB OptionBXNo B-slot option cardC OptionCXXXXNo C-slot option cards (no fieldbus card)D OptionD0No D option

Electrical Specifications
ParameterValueInput Voltage3 × 380–500 VAC, 50/60 HzOutput Power5.5 kW (7.5 HP)Continuous Output Current (@ 400 V)13 AIntermittent Overload160% of rated current for 60 seconds every 10 minutesOutput Frequency Range0–590 HzSwitching FrequencyUp to 16 kHz (with derating)Control ModesVVC+ (open/closed loop), Flux Vector (open/closed loop), U/fMotor CompatibilityAsynchronous (induction), Permanent Magnet Synchronous (PM), Synchronous Reluctance (SynRM)Enclosure RatingIP55 / NEMA Type 12Ambient Temperature–10 °C to +50 °C (14 °F to 122 °F) without deratingIntegrated DC ChokeYesRFI FilterClass A1/B (C1) — integratedBrake ChopperYes — included (external brake resistor required, not included)Safe Torque Off (STO)Terminal 37, SIL 2 / PLd (per IEC 61508 / EN ISO 13849-1)

Communication
InterfaceDetailsRS-485Built-in, FC protocol or MC protocolUSBBuilt-in FC USB port for PC connectionFieldbus OptionsOptional via A/B/C-slot cards: PROFIBUS DP-V1, PROFINET, EtherNet/IP, DeviceNet, Modbus TCP, CANopen, EtherCAT (cards not included with this unit)

Control I/O (Standard)
TerminalFunctionDigital Inputs6 × programmable (terminals 18, 19, 27, 29, 32, 33)Analog Inputs2 × configurable voltage (0–10 V / ±10 V) or current (0/4–20 mA) (terminals 53, 54)Analog Output1 × 0/4–20 mA (terminal 42)Digital Output1 × programmable (terminal 27/29 configurable)Relay Outputs2 × Form C (SPDT) relaysPulse/Encoder InputTerminal 29 and 33 support pulse/frequency input10 V Reference SupplyTerminal 50, 15 mA max24 V DC SupplyTerminal 12/13, 200 mA max (for sensors/switches)

Included Features

Graphical LCP 102 Display — Full-text graphical keypad with copy/paste parameter functionality between drives
Smart Logic Controller (SLC) — Built-in event-driven sequencer for basic automation without an external PLC
Integrated Motion Controller (IMC) — Software-configurable positioning and synchronization (no additional hardware required)
Automatic Motor Adaptation (AMA) — Automated motor parameter tuning at commissioning
4 Independent Parameter Set-Ups — Store and switch between four complete parameter profiles
Built-In DC Choke — Reduces harmonic distortion on the mains supply
Integrated RFI Filter — EMC Class A1/B (C1) for industrial and light commercial environments
Flying Start — Catches a spinning motor without stopping it first
Kinetic Backup / Ride-Through — Maintains control during brief power interruptions by extracting energy from motor inertia

Mechanical
ParameterValueEnclosureIP55 / NEMA Type 12 — sealed, dust-tight, splash/wash-down resistantMountingWall-mount or panel-mount (standalone — no cabinet required)Frame SizeB-series (IP55 variant for 5.5 kW T5)CoolingFan-cooled, integrated

Condition & Notes
Condition: [INSERT: New / Used / Surplus / Refurbished]
Tested: [INSERT: Yes — bench tested and verified functional / Sold as-is]
Includes: Drive unit, graphical LCP 102 keypad (attached). [INSERT: Any additional items — original box, mounting hardware, manual, etc.]
No fieldbus option cards are installed. RS-485 serial communication is available as standard. Optional fieldbus cards (PROFIBUS, PROFINET, EtherNet/IP, etc.) can be purchased separately and installed in the A, B, or C option slots.
External brake resistor not included. The brake chopper is built into this drive — an appropriately sized external brake resistor must be connected separately if dynamic braking is required.

Ideal Applications
Conveyors, hoists, cranes, mixers, centrifuges, winders, extruders, pumps, fans, compressors, machine tools, packaging machinery, and any application requiring precise speed/torque control or dynamic braking capability.

Key Documents (Available from Danfoss)

Programming Guide: MG33MO02
Operating Guide: MG33AT02
Design Guide: MG33BG02
Safe Torque Off Operating Guide: MG33AF02
