An Introduction to the dangers of Federal Pacific Electric “Stab-Lok” Panels & Breakers
In the quiet corners of many homes, behind a nondescript wooden door, lies a component crucial to our daily comfort and safety: the electrical panel. Among the many brands, Stab-Lok (or Federal Pacific Electric, “FPE”) electrical panels, which were installed in millions of homes before the 1990s, are now under scrutiny. Despite their once widespread use, a growing body of evidence has revealed that Stab-Lok panels may harbor hidden dangers that homeowners cannot afford to ignore.
Stab-Lok panels, recognizable by their distinctive design and breaker style, were popular for their affordability and ease of installation. However, a body of evidence gathered over time & through regulatory investigations have brought into question their reliability & safety, linking them to an increased risk of breaker malfunctions, which can lead to electrical fires and other safety hazards.
This article aims to shed light on the critical concerns surrounding Stab-Lok electrical panels, highlighting the risks they pose, real-life incidents resulting from their failure, and the steps homeowners can take to safeguard their homes. If your home dates back to the era when Stab-Lok panels were prevalent, as many are, staying informed and vigilant could help to prevent the risk of electrical fires & incidents that may put your family’s safety at risk.
Background on Stab-Lok Panels
Stab-Lok electrical panels, a common sight in residential homes, have a history that dates back several decades. Understanding their design, functionality, and why they became a popular choice in addition to more recent discoveries regarding their electrical safety can provide insight into the concerns that have emerged.
Design and Operation

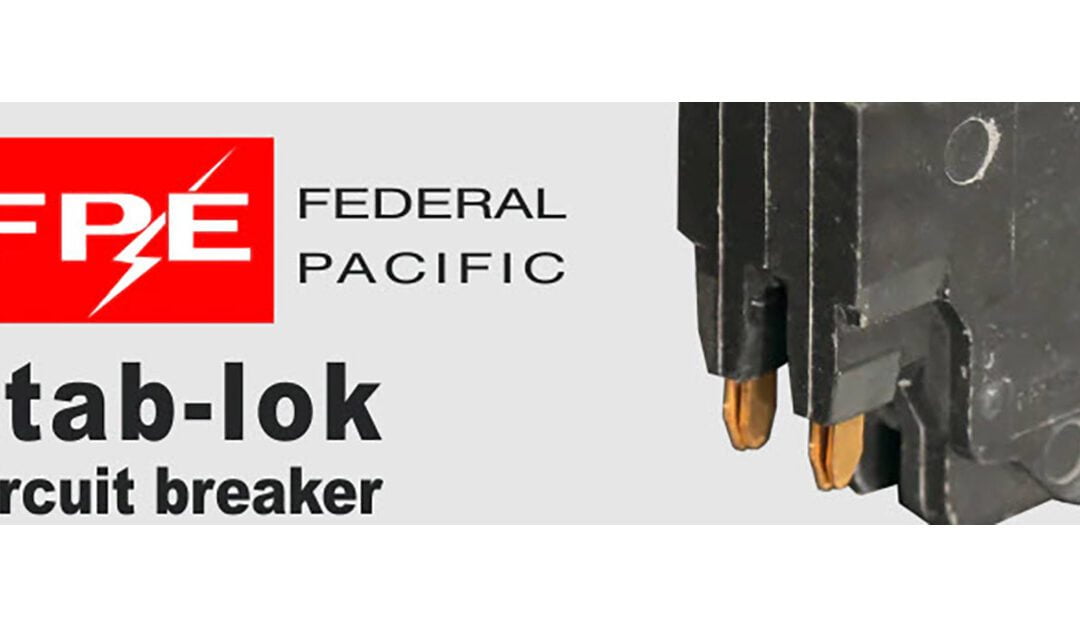

- Easily identified by the “Stab-Lok” & “FPE” (Federal Pacific Electric) symbols found on the panel, Stab-Lok brand panels have a marked difference in design to most other panels found in homes today.
- Stab-Lok panels are easily identifiable by their unique breaker design, where circuit breakers are physically “stabbed” onto a bus bar to establish an electrical connection. This setup predates more modern designs in which breakers are fixed in place via a spring-loaded connection or by using screws to keep them in the proper position.
- In their day, the panels were marketed for their compact size and cost-effectiveness, making them an appealing choice for builders and homeowners alike during their peak production years. “Stab-Lok” breakers were often half the width of other brands, which allowed for a more compact overall design.
Historical Context
- Introduced in the 1950s by Federal Pacific Electric (“FPE”), Stab-Lok panels were installed in millions of homes across North America. Their popularity was widespread at the time due to their affordability and the rapid expansion of suburban housing developments.
- For decades, these panels were a standard choice in new residential construction, installed both in new homes and used as replacements in older structures.
- As investigations of the safety & regulatory compliance of the brand became public knowledge in the late 1970’s, The Stab-Lok brand was discontinued by the original manufacturer and the business sold. Stab-Lok brand panels continued to be manufactured for a time under different ownership until the 1990’s & reproductions of the breakers are still made today.
While Stab-Lok electrical panels enjoyed widespread use, the Stab-Lok brand eventually came under scrutiny for a lack of adherence to UL (Underwriters Laboratory) standards. (The Underwriters Laboratory is an organization which certifies electrical equipment as safe for use & approves equipment for sale in the North American market.) Concerns arose not during their initial production but years later, as reports of malfunctions began to surface. Thus, the claims of safety and reliability once associated with these electrical panels began to be challenged. This historical context sets the stage for understanding the critical safety issues that would later dominate discussions about Stab-Lok panels.
Additional information regarding the brand and the associated safety concerns may be found here:
https://en.wikipedia.org/wiki/Stab-Lok
https://inspectapedia.com/fpe/Hazardous-FPE-Stab-Lok-Circuit-Breakers-and-Panels-2024.pdf
Identified Risks and Concerns
Over time, as many of these Stab-Lok electrical panels aged, significant safety concerns emerged, casting doubt on their reliability and safety. Subsequent investigations and reports have highlighted key issues that homeowners need to be aware of.
Failure to Trip
- One of the primary concerns with Stab-Lok brand breakers is their reported failure to trip in overload or short-circuit conditions. Circuit breakers are designed to “trip,” or shut off electrical circuits to prevent overheating and potential fires when circuits are overloaded. However, numerous tests and reports have indicated that Stab-Lok breakers may not consistently trip as intended, posing a significant fire risk. As your home is likely wood framed, imagine what the heat of sparks or melting wires would do inside your walls. A significant fire risk!
While not all of these breakers may fail to trip, testing reports have suggested that in some cases, up to 80% of Stab-Lok GFCI breakers installed in a given panel may fail to trip at their rated amperage and others also fail at a greatly increased rate in comparison to other brands. The typical failure rate of other electrical breaker brands is reported to be a mere fraction of a percent.
But up to now my panel has never had a problem!
- A claim by a building owner or resident that there have been no issues with a specific FPE Stab-Lok® panel does not guarantee its safety. It is possible that the building simply has not yet faced an over-current or short circuit event in any of its circuits.
- Alternatively, a previous overcurrent might have caused a breaker to trip and potentially increased the likelihood that the same breaker will not trip in future situations.
- It would be risky for a building seller to assure the ongoing safety of an electrical panel in the building they are selling.
- Equally, it would be risky for a building buyer to trust assertions from a seller, real estate agent, or electrician claiming that an FPE Stab-Lok® electrical panel is “safe,” given that independent studies suggest otherwise.
The 2 Pole Breaker Issue
- After reviewing relevant documents and consulting our personal experience in this field, we are persuaded that a hidden danger persists with the continued use of FPE Stab-Lok® circuit breakers, particularly with the double-pole breakers.
- Tests documented in published reports show that under certain conditions, one side of these circuits may attempt to trip the breaker, leading to a jammed breaker that subsequently fails to trip under any load.
- From the CPSC 1983 press release, one could deduce that the manufacturer and some members of the Commission believed these conditions would not arise in actual use.
- This belief was and continues to be incorrect. Common household appliances that use a dual-pole 240V circuit (protected by the type of breaker in question) often have multiple independent 120V sub-circuits.
- Examples include electric clothes dryers and ranges. For instance, if the low-heat (110V) element in a dryer shorts to the dryer case, it would cause a significant overcurrent in one “leg” of the circuit.
- Another electrical setup involves using a single two-pole breaker for a split circuit with a shared neutral, as might be found in kitchen wiring. This configuration often leads to each leg of the circuit being independently loaded, increasing the risk of single-leg overloads and subsequent breaker jamming. A breaker that jams and then fails to trip in such a scenario poses a significant fire hazard, in our view.
- A closer examination of the CPSC’s March 3, 1984 press release indicates that the authors were cautious not to dismiss the presence of a hazard outright, but rather stated that available information did not confirm the hazard and that the Commission lacked the funds for further testing.
- The assertion in the document that no real hazard exists comes from the manufacturer of the breakers, who is not an unbiased source. Even so, their statement is tentative, saying “FPE breakers will trip reliably at most overload levels.”
Safety Investigations and Reports
- Various electrical safety authorities and independent researchers have conducted investigations into the safety of Stab-Lok panels. Reports from these investigations have consistently raised alarms about the potential dangers posed by these panels, leading to increased scrutiny and calls for action.
The growing body of evidence regarding the risks associated with Stab-Lok panels has led to a critical reassessment of their place in residential electrical systems. Homeowners with these panels installed in their homes are encouraged to take these concerns seriously and consider the steps necessary to ensure their safety and that of their property. Stab-Lok branded breakers have been investigated and found suspect by:
- The United States Consumer Product Safety Commission
- The Underwriters Laboratory
- The Ontario New Home Warranty Program
- The Institute of Electrical & Electronics Engineers
- The Superior Court of New Jersey
- Dr. Jess Aronstein through his independent studies & report
Real-Life Incidents
The theoretical risks associated with Stab-Lok panels have been underscored by real-life incidents, bringing the dangers from the realm of possibility into stark reality. These events serve as cautionary tales, highlighting the potential consequences of failing to address the issues inherent in Stab-Lok panels.

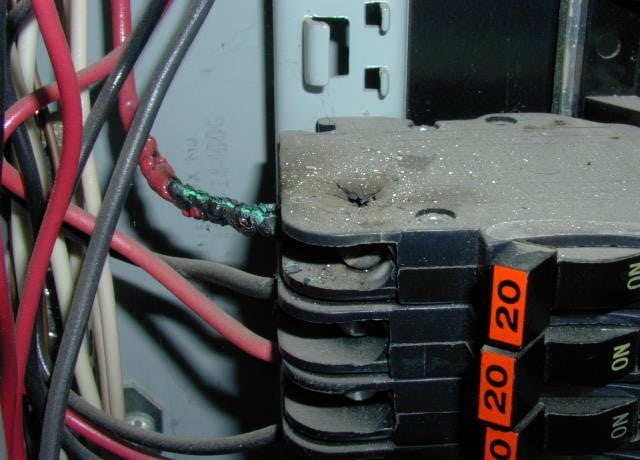

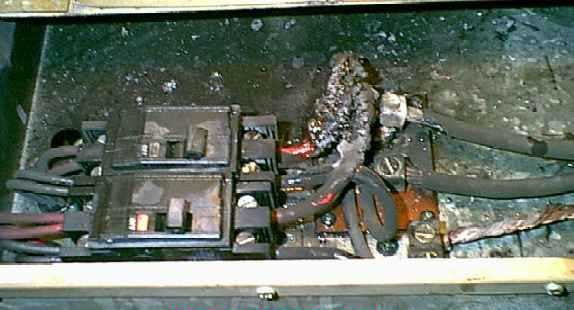

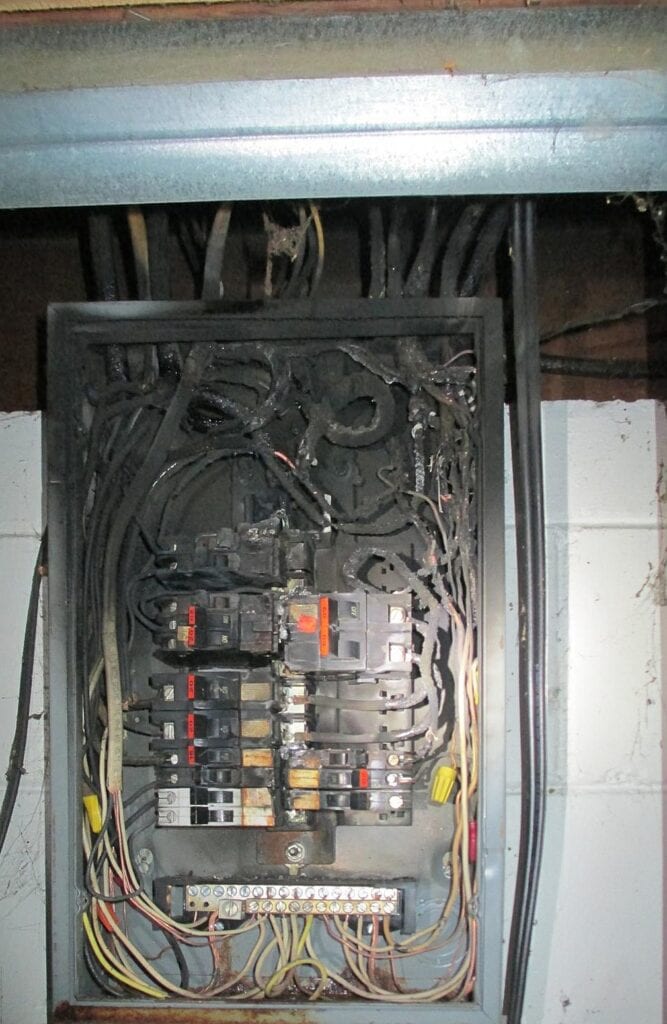

- Electrical Fires: There have been documented cases where electrical fires were directly linked to Stab-Lok panels. In some of these instances, the failure of the panel’s circuit breakers to trip under overload conditions resulted in overheating and ignition. The fires caused not only property damage but also posed serious risks to the occupants’ safety. A significant increase in overall fire risk has been found in homes across Canada & the United States which have these panels installed.
- Power Surges: Homeowners have reported incidents of power surges damaging appliances and electronics, where Stab-Lok panels failed to provide adequate protection. These surges can lead to significant financial losses and the inconvenience of replacing expensive equipment.
- Insurance Claims and Denials: Some individuals have faced challenges with insurance claims related to Stab-Lok panels. Insurance companies, aware of the panels’ notorious reputation, have sometimes denied claims or increased premiums for homes with these panels installed, citing the increased risk of electrical malfunctions.
These real-life incidents serve as a stark reminder of the importance of taking proactive measures to ensure the safety of one’s home electrical system. They underscore the need for homeowners to be vigilant, informed, and ready to take action to prevent similar occurrences in their own homes. The following are a series of confirmed photographs in which fires or considerable damage have occurred due to faulty Stab-Lok/FPE equipment.
Official Recommendations and Actions
In response to the growing concerns about the safety of Stab-Lok electrical panels, various official bodies and safety organizations have issued recommendations and taken actions to address the potential risks. These steps aim to protect homeowners and guide them in mitigating the dangers associated with these panels.
Advisories and Safety Notices
- Electrical safety authorities in numerous regions have issued advisories highlighting the potential risks of Stab-Lok panels. These notices often recommend that homeowners have their panels inspected by qualified professionals to assess their condition and safety. Inspections alone however are not sufficient to ensure the safety of the end user. Inspections do not involve rigorous testing of the equipment being inspected and it is our professional opinion & responsibility to recommend that Stab-Lok & FPE electrical panels be replaced in their entirety as quickly as possible.
Recalls and Legal Actions
- While widespread recalls of Stab-Lok panels have not been universally mandated, there have been instances of legal action, including class-action lawsuits such as the successful lawsuit brought forward in the State of New Jersey, related to the safety and reliability of these panels & the breakers they contain. Homeowners affected by such issues have sought recourse through legal channels to address their concerns and seek compensation for damages.
Replacement Recommendations
- Many electricians and safety experts strongly recommend replacing Stab-Lok panels as a precautionary measure. The industry consensus is that the potential risks outweigh the costs of replacement, and upgrading to a modern, more reliable electrical panel can significantly enhance the safety of a home & its occupants.
Home Inspection Implications
- During home inspections, the presence of a Stab-Lok panel is often flagged as a potential issue. Homebuyers are increasingly aware of the risks associated with these panels, and their presence can affect the sale or value of a home. Sellers may be advised to replace these panels before listing their properties to avoid complications during the sale process.
These official recommendations and actions underscore the importance of taking concerns about Stab-Lok panels seriously. Homeowners are encouraged to stay informed about the latest advisories and consider the advice of professionals when deciding how to address the presence of these panels in their homes.
Identifying Stab-Lok Panels in Your Home
For homeowners, particularly those in houses built or renovated before the 1990s, it is crucial to determine whether a Stab-Lok panel is part of your electrical system. Identifying these panels can be the first step in assessing potential risks and deciding on necessary actions. Here is how you can identify a Stab-Lok panel:
Visual Identification
- Look for the “Stab-Lok” or “FPE” label inside the electrical panel door. This is the most straightforward identifier.
- Stab-Lok panels typically have a characteristic color scheme, often with a distinctive red, blue, or orange handle on the breakers.
- The breakers in a Stab-Lok panel are unique in that they push directly into the panel and do not “hook” or “clip” onto a mounting rail.
- A cursory inspection of the panel will show breakers that have a much narrower width than those typically seen in modern panels today, although this is not a sure way of identifying a Stab-Lok panel as there are other brands which manufacture breakers of a similar form factor.
Checking Documentation
- Review your home’s original documentation or any records of electrical work or equipment installed. The type of panel installed should be listed in these documents.
- If you recently purchased your home, the inspection report will more than likely mention the type of electrical panel installed.
- Should the manufacturers stickers or nameplate be missing, a view of the interior panel or door of the panel may show stampings or paperwork that identify the make & model of your panel.
Professional Inspection
- If you are unsure or unable to identify the panel type, consider hiring a licensed electrician to conduct an inspection. An experienced professional can quickly and accurately identify a Stab-Lok panel and provide advice on the next steps.
Identifying a Stab-Lok panel in your home is a critical step in addressing potential safety concerns. If you discover you have one, the next step is to consult with a professional to assess its condition and discuss possible actions, including replacement, to ensure your home’s electrical system is safe and reliable.
Recommended Steps for Homeowners
If you have identified a Stab-Lok panel in your home or suspect you might have one, taking decisive action is crucial for ensuring the safety of your home and family. Here is a guide on the steps you should consider:
Consult a Licensed Electrician
- The first step should always be to consult with a licensed electrician who has experience with Stab-Lok panels. They can conduct a thorough inspection to assess the condition of your panel and advise on the best course of action.
- An electrician can also test the functionality of the circuit breakers to ensure they are operating correctly, though it is important to note that intermittent issues with Stab-Lok breakers may not always be evident during a single inspection and that certain models of these breakers have been shown to trip once and become unusable after the fact.
Consider Panel Replacement
- Given the potential risks associated with Stab-Lok panels, many electricians and safety experts recommend replacing them, even if no immediate problems are evident.
- Panel replacement involves removing the old Stab-Lok panel and installing a new one that meets current safety standards. This process should only be carried out by a qualified professional.
Evaluate Replacement Costs
- The cost of replacing an electrical panel can vary widely based on factors like the size of the new panel, the complexity of the installation, and local labor rates. Your electrician can provide a detailed estimate.
- While the expense might seem significant, it is important to weigh it against the potential safety risks and peace of mind that comes with knowing your home’s electrical system is up to current standards. It is a small price to pay versus the potential risks which may in fact include the loss of your home and/or loss of life.
Explore Financial Assistance
- In some cases, local governments or utility companies may offer programs or incentives to assist homeowners with the cost of upgrading outdated electrical systems. It is worth investigating whether any such support is available in your area.
Taking proactive steps to address the presence of a Stab-Lok panel in your home not only safeguards against potential electrical hazards but also contributes to the overall value and insurability of your property. Prioritizing the safety and integrity of your home’s electrical system is an investment in your peace of mind.
Conclusion
The concerns surrounding Stab-Lok electrical panels in homes are more than just technical issues; they represent potential risks to the safety and well-being of families.
The historical use of these panels and the subsequent discovery of their potential dangers underscore the importance of staying informed about the components of your home’s electrical system. Identifying and addressing issues with Stab-Lok panels is not just a matter of home maintenance; it is a critical step in ensuring the safety of your living environment.
If you discover that your home has a Stab-Lok panel, or if you are purchasing a home that might contain one, taking immediate action is crucial. Consulting with a licensed electrician and considering the replacement of the panel can protect your home from potential electrical hazards. While the cost of replacement may seem daunting, the peace of mind and safety it brings are invaluable.
As homeowners, it is our responsibility to be vigilant about all aspects of home safety, and the electrical system is no exception. By taking proactive steps to assess and upgrade outdated or potentially dangerous components like Stab-Lok panels, we can create safer, more secure homes for ourselves and our loved ones.
